  • Semiconductor Ring Laser

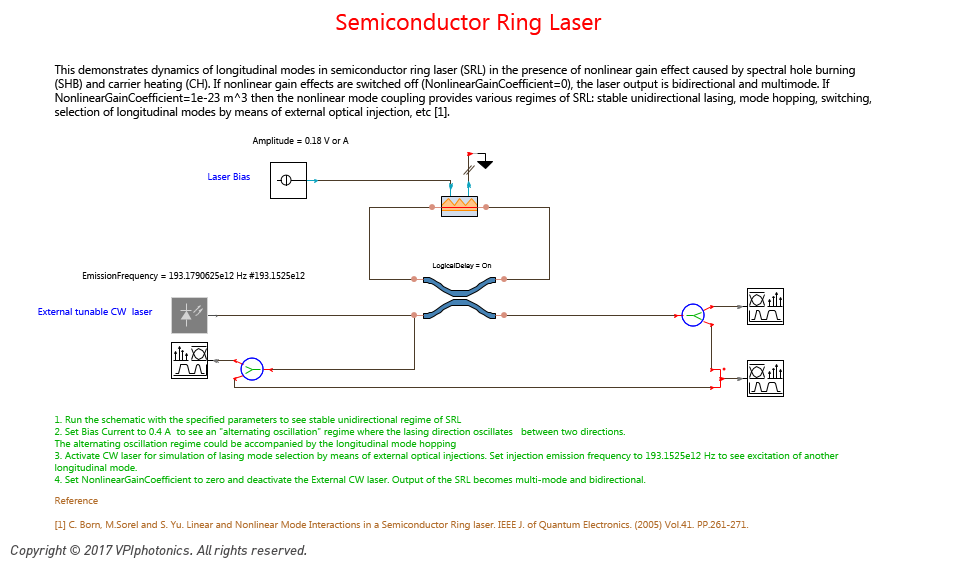

    This demonstrates dynamics of longitudinal modes in semiconductor ring laser in the presence of nonlinear gain effect caused by spectral hole burning and carrier heating.

    Picture for Semiconductor Ring Laser

    » Keywords: Mode Hopping, Carrier Heating, Carrier Oscillation, SRL, Semiconductor Ring Laser, SHB, Nonlinear Mode Coupling, Spectral Hole Burning, External Optical Injection
    » Available in: Photonic Circuits Demos

  • SOA Characterization with TestSetSOA

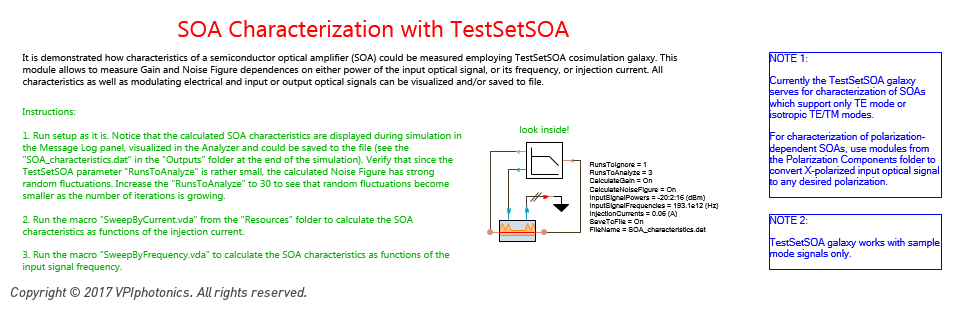

    This demo illustrates how characteristics of a semiconductor optical amplifier (SOA) could be measured employing TestSetSOA cosimulation galaxy. This module allows to measure Gain and Noise Figure dependences on either power of the input optical signal, or its frequency, or injection current. All characteristics as well as modulating electrical and input or output optical signals can be visualized and/or saved to file.

    Picture for SOA Characterization with TestSetSOA

    » Keywords: SOA, Instrumentation, Characterization, Python, Noise Figure, Gain
    » Available in: Photonic Circuits Demos

  • Semiconductor Optical Amplifier with Measured Carrier-Dependent Gain Spectra

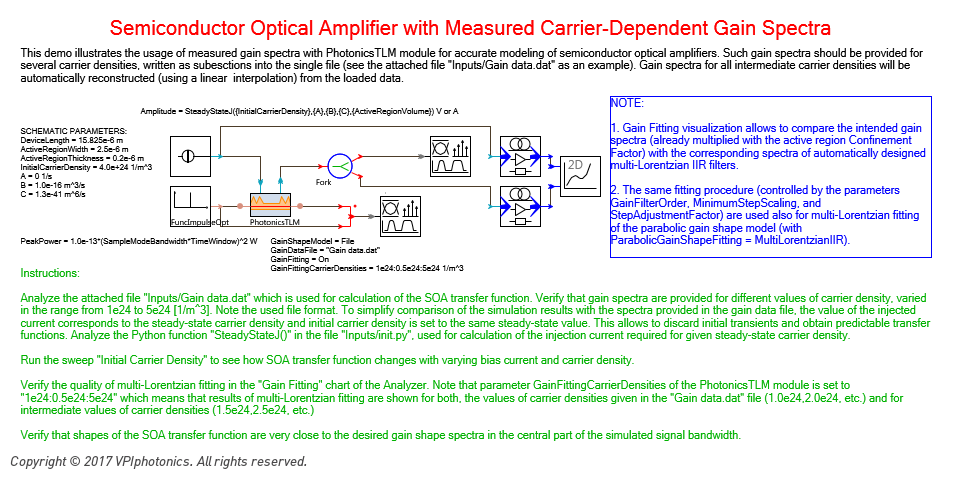

    This demo illustrates the usage of measured gain spectra with PhotonicsTLM module for accurate modeling of semiconductor optical amplifiers. Such gain spectra should be provided for several carrier densities, written as subesctions into the single file. Gain spectra for all intermediate carrier densities will be automatically reconstructed (using a linear interpolation) from the loaded data.

    Picture for Semiconductor Optical Amplifier with Measured Carrier-Dependent Gain Spectra

    » Keywords: SOA, Gain Shape, Gain Spectrum, Multi-Lorentzian, PhotonicsTLM, Measured
    » Available in: Photonic Circuits Demos

  • Soliton Transmission using a Near-Soliton Source


    A grating-controlled mode-locked laser generates near solitons. These have some negative chirp (blue to red). The chirp allows pulse compression in a DCF fiber to give 20-ps FWHM pulses. Unfortunately, these have a slow trailing edge. The compressed pulses are amplified to 56 mW peak, then propagate along a fiber path.

    Picture for Soliton Transmission using a Near-Soliton Source

    » Keywords: Soliton, ML, System, Pulse, Mode Locked, Time Domain
    » Available in: Photonic Circuits Demos

  • Tapered SOA

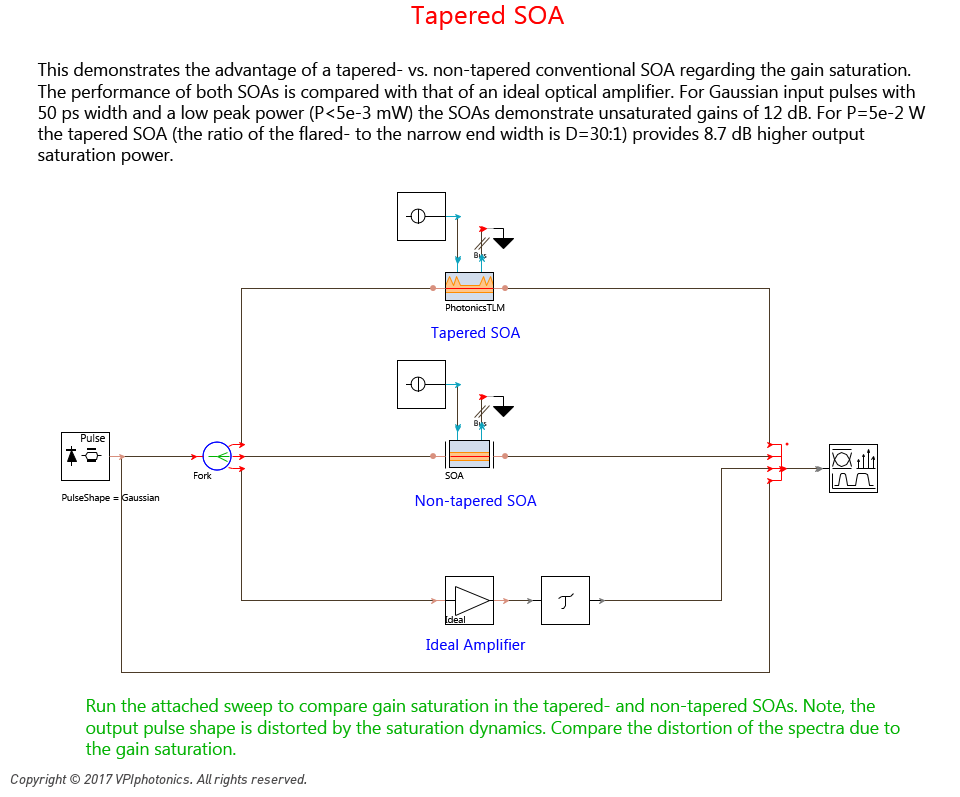

    Shows simulation of gain saturation in tapered and non-tapered SOAs.

    Picture for Tapered SOA

    » Keywords: Gain saturation, Tapered SOA
    » Available in: Photonic Circuits Demos

  • Widely Tunable Hybrid III-V / Si Laser

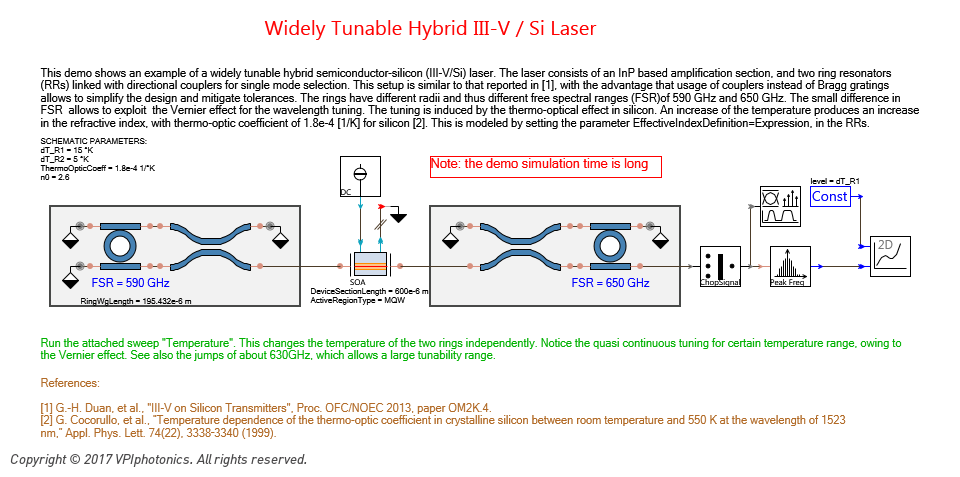

    This demo shows an example of a widely tunable hybrid semiconductor-silicon (III-V/Si) laser. The laser consists of an InP based amplification section, tapers for the modal transfer between III-V and Si waveguides, two ring resonators (RRs) linked with directional couplers for single mode selection, and metal heaters on top of the rings for the thermal wavelength tuning. This setup is similar to that reported in [1], with the advantage that usage of couplers instead of Bragg gratings allows to simplify the design and mitigate tolerances. The slight difference between FSRs of the used RRs allows taking advantage of the Vernier effect for the wavelength tuning.

    Picture for Widely Tunable Hybrid III-V / Si Laser

    » Keywords: Laser, Silicon Photonics, PIC, Tunable, Vernier effect, Microring, Ring Resonator
    » Available in: Photonic Circuits Demos
