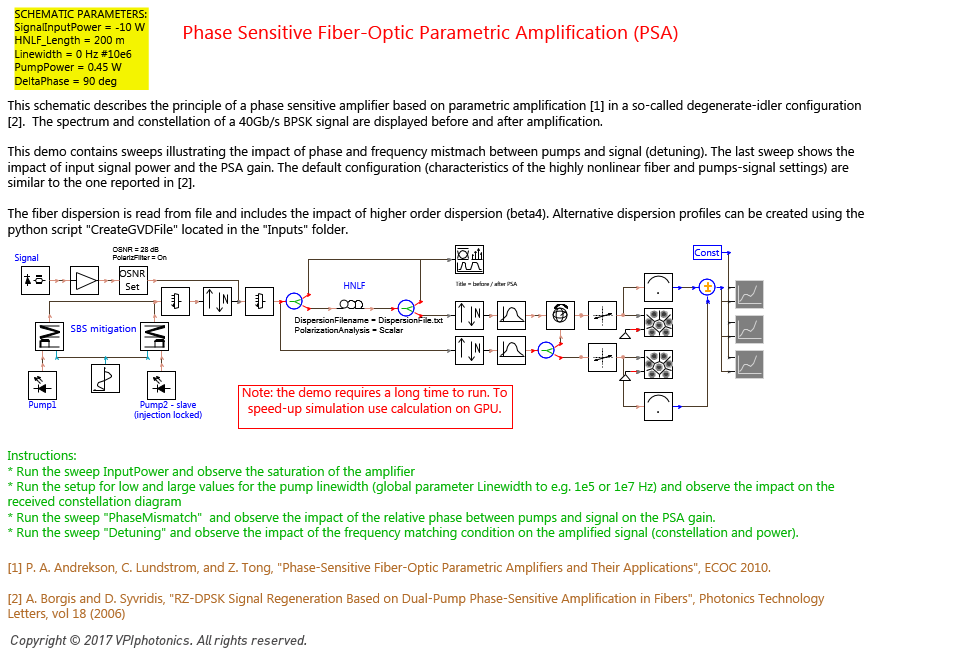

  • Phase Sensitive Fiber-Optic Parametric Amplification (PSA)


    This schematic describes the principle of a phase sensitive amplifier based on parametric amplification.

    Picture for Phase Sensitive Fiber-Optic Parametric Amplification (PSA)

    » Keywords: Parametric Amplification, HNLF, FOPA, Pump, Idler, Highly Nonlinear Fiber
    » Available in: Fiber Optics Demos, Optical System Demos

  • Principle of Fiber-Optic Parametric Amplification
    (FOPA)


    The principle of a phase-insensitive fiber optic parametric amplifier (FOPA) is demonstrated.

    Picture for Principle of Fiber-Optic Parametric Amplification <br>(FOPA)

    » Keywords: Parametric Amplification, HNLF, FOPA, Pump, Idler, Highly Nonlinear Fiber
    » Available in: Fiber Optics Demos, Optical System Demos

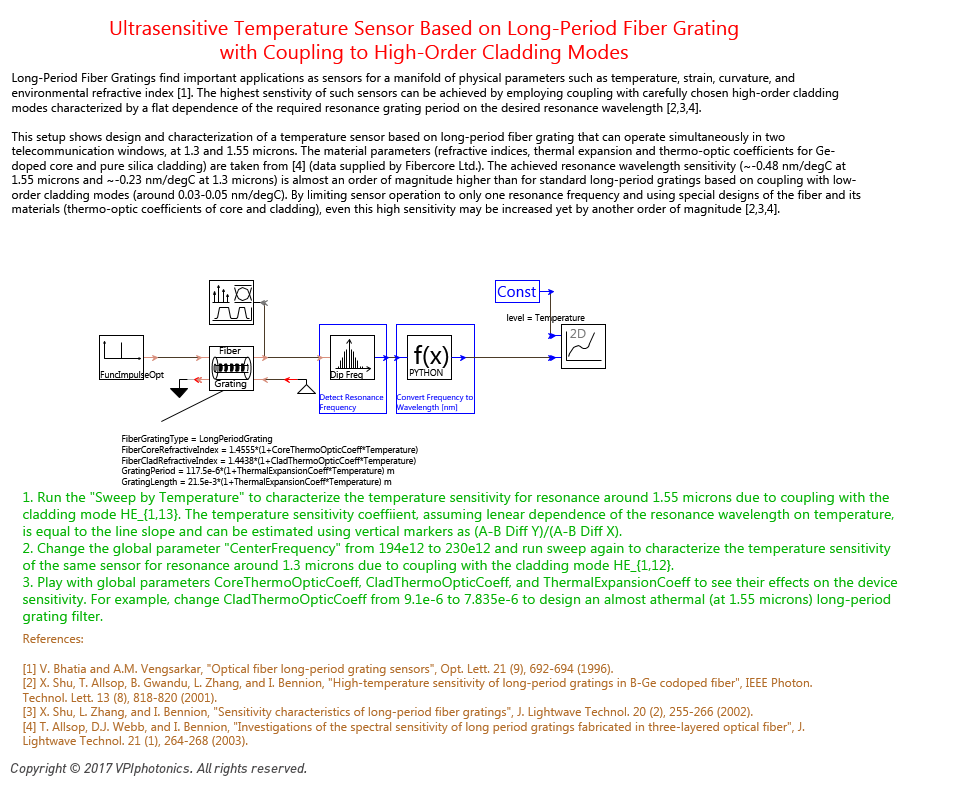

  • Ultrasensitive Temperature Sensor Based on Long-Period Fiber Grating
    with Coupling to High-Order Cladding Modes


    Illustrates design and characterization of long-period fiber grating temperature sensor with extraordinary sensitivity due to coupling with high-order fiber cladding modes.

    Picture for Ultrasensitive Temperature Sensor Based on Long-Period Fiber Grating <br>with Coupling to High-Order Cladding Modes

    » Keywords: Temperature sensor, Long-period grating, Fiber cladding modes, Fiber optic sensor
    » Available in: Fiber Optics Demos, Optical System Demos

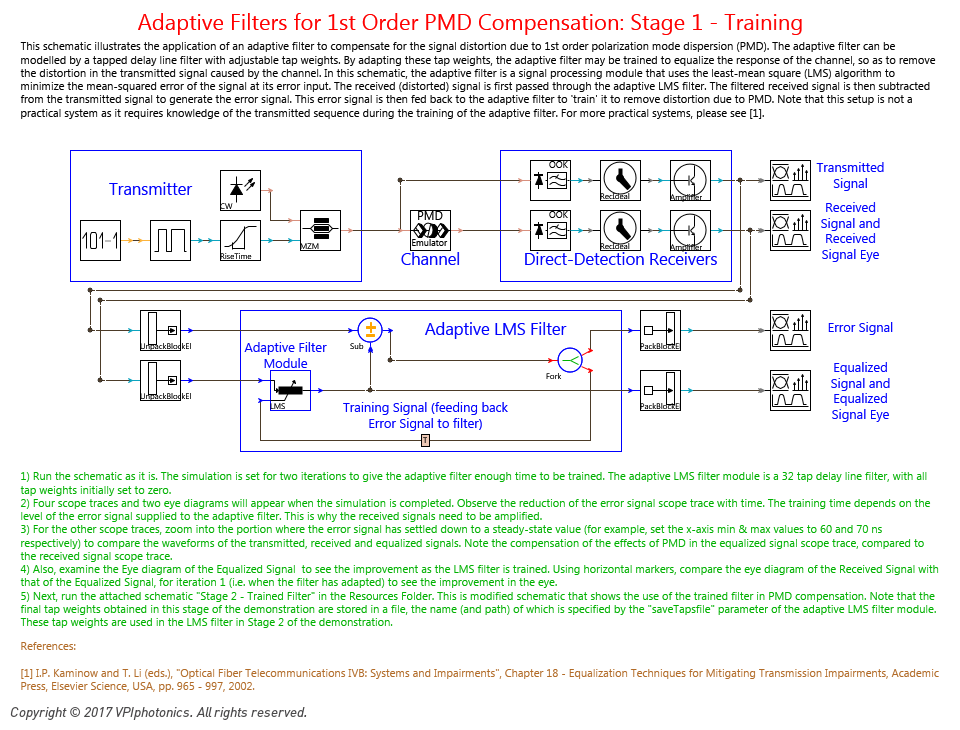

  • Adaptive Filters for 1st Order PMD Compensation: Stage 1 - Training


    Shows the application of an adaptive filter to compensate for signal distortion due to 1st order polarization mode dispersion (PMD). The adaptive filter uses the least-mean square (LMS) algorithm to minimise the mean-squared error between the desired (ideal) training signal and the filtered PMD-distorted received signal at its output.

    Picture for Adaptive Filters for 1st Order PMD Compensation: Stage 1 - Training

    » Keywords: PMD, Compensation, LMS, Adaptive Filters
    » Available in: Optical System Demos

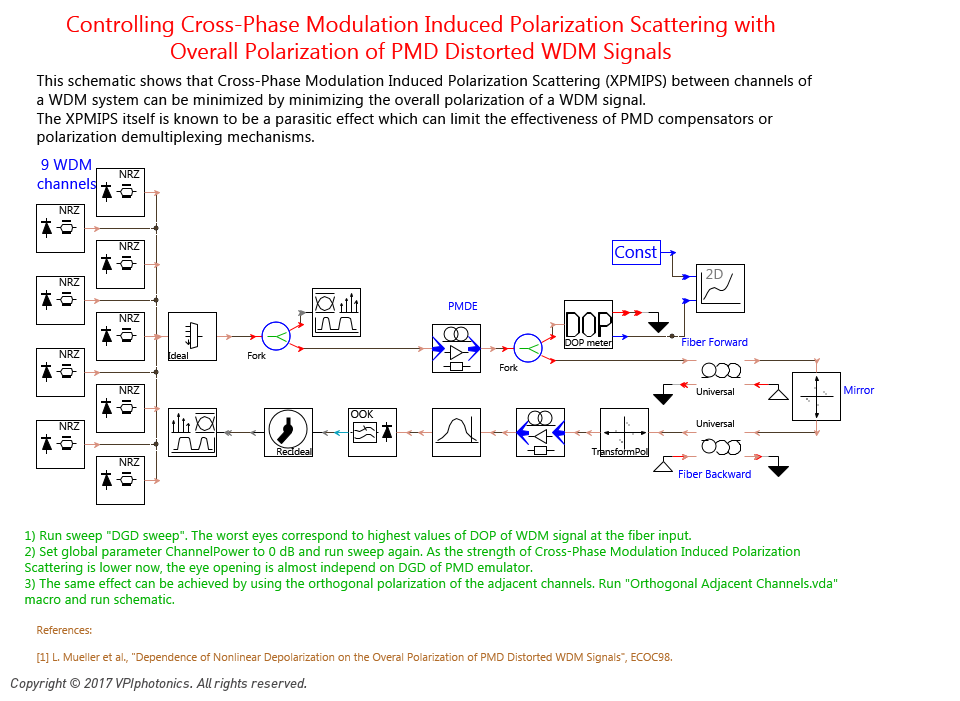

  • Controlling Cross-Phase Modulation Induced Polarization Scattering with Overall Polarization of PMD Distorted WDM Signals


    This schematic shows that overall polarization of a WDM signal has to be minimized in order to reduce Cross-Phase Modulation Induced Polarization Scattering between channels of a WDM system which can limit the effectiveness of PMD compensators.

    Picture for Controlling Cross-Phase Modulation Induced Polarization Scattering with Overall Polarization of PMD Distorted WDM Signals

    » Keywords: PMD, polarization scattering, XPM, WDM
    » Available in: Optical System Demos

  • ENOB Estimation of an ADC with Realistic Impairments


    Estimation of ADC ENoB

    Picture for ENOB Estimation of an ADC with Realistic Impairments<br>

    » Keywords: ENoB, Effective number of bits, Resolution, ADC, DAC
    » Available in: Optical System Demos

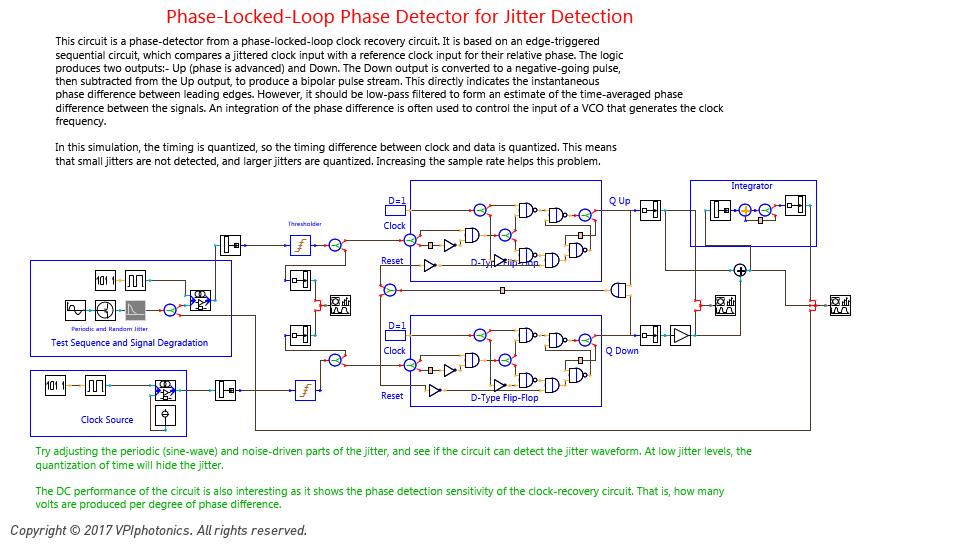

  • Phase-Locked-Loop Phase Detector for Jitter Detection


    Implements a state-machine-based phase-detector that can be used to analyze timing jitter. Can be used as part of a phase-locked loop.

    Picture for Phase-Locked-Loop Phase Detector for Jitter Detection

    » Keywords: jitter, machine, state, phase, detector, PLL, loop
    » Available in: Optical System Demos

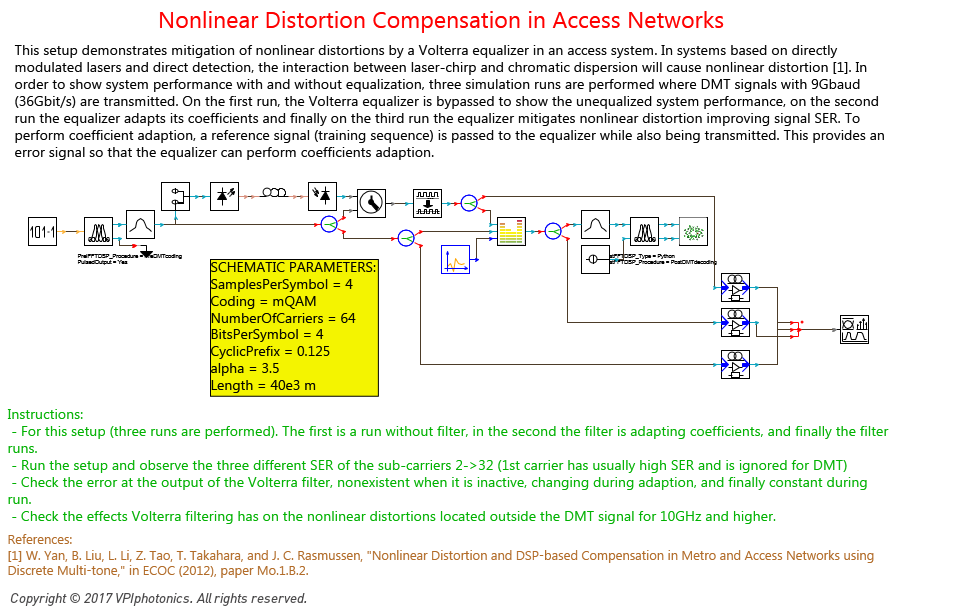

  • Nonlinear Distortion Compensation in Access Networks


    This demo demonstrates mitigation of nonlinear distortions in direct-modulation/direct-detection OFDM based access system using a Volterra equalizer.

    Picture for Nonlinear Distortion Compensation in Access Networks

    » Keywords: OFDM, Discrete Multitone, Equalization, Distortion, Access, Compensation, DMT, Orthogonal Frequency Division Multiplexing, Volterra
    » Available in: Optical System Demos

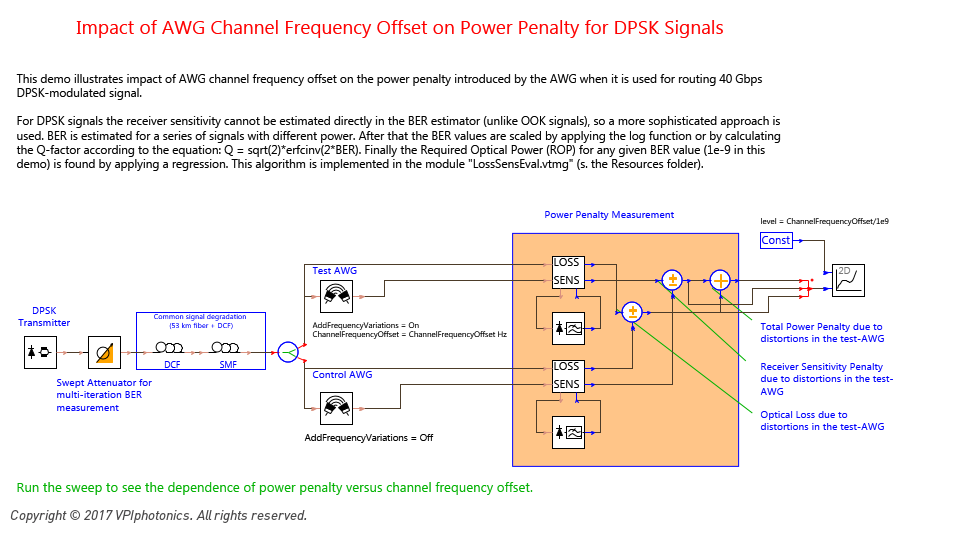

  • Impact of AWG Channel Frequency Offset on Power Penalty for DPSK Signals


    Illustrates the power penalty and receiver sensitivity estimation for a 40 Gbps DPSK system in case of AWG channel frequency offset.

    Picture for Impact of AWG Channel Frequency Offset on Power Penalty for DPSK Signals

    » Keywords: AWG, Power Penalty, Receiver Sensitivity, Channel Frequency Offset, DPSK
    » Available in: Optical System Demos

  • DAC Requirements for Electrical OFDM


    This demo illustrates how DAC characteristics affect the performance of electrical OFDM signals.

    Picture for DAC Requirements for Electrical OFDM

    » Keywords: mQAM, Digital to Analog Converter, OFDM, DAC, CmQAM, DSP, DMT
    » Available in: Optical System Demos

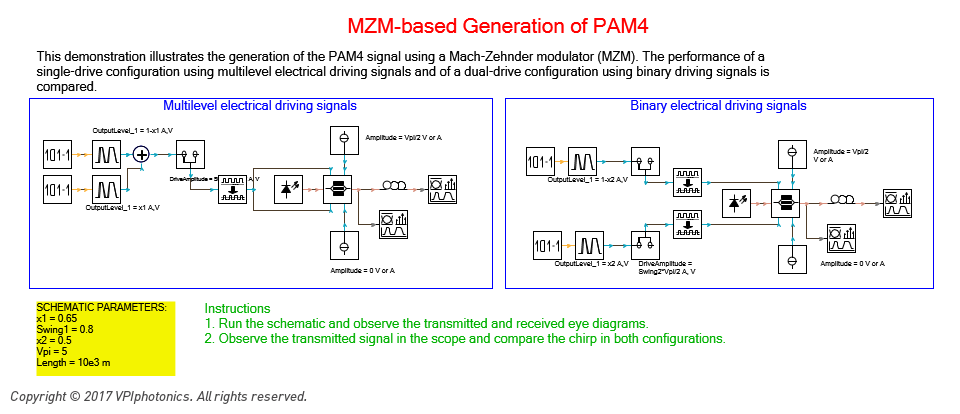

  • MZM-based Generation of PAM4


    This demonstration shows the generation of the 4PAM signal using a Mach-Zehnder modulator (MZM).

    Picture for MZM-based Generation of PAM4

    » Keywords: MZM, SiP, PAM, 4PAM
    » Available in: Optical System Demos

  • SiP-based IQ Modulator


    This demo illustrates the performance limitation of silicon based IQ modulator based on the Mach-Zehnder Interferometer architecture [1] governed by electro-optical effects in silicon [2]: a phase modulation achieved by carriers injection or depletion in a Si-based PN junction is always accompanied by amplitude modulation.

    Picture for SiP-based IQ Modulator

    » Keywords: SiP, modulator, IQ, Silicon, carrier, raised cosine, Nyquist, PN
    » Available in: Optical System Demos
