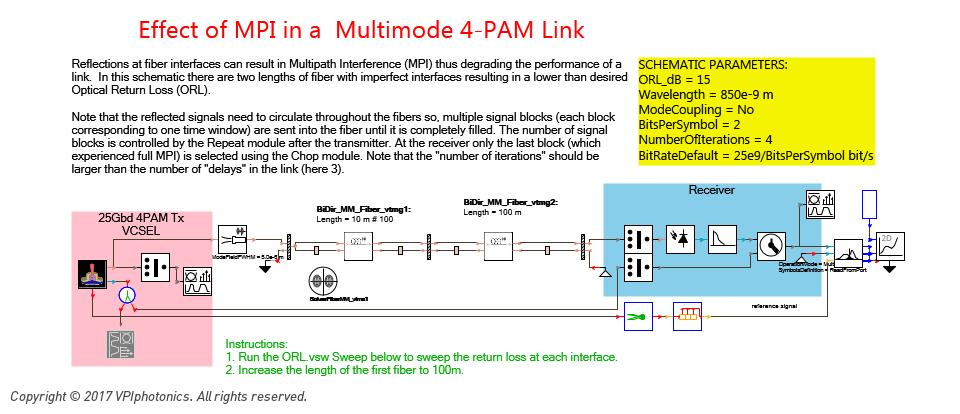

  • Effect of MPI in a Multimode 4-PAM Link


    Reflections at fiber interfaces can result in Multipath Interference (MPI) thus degrading the performance of a link.

    Picture for Effect of MPI in a  Multimode 4-PAM Link

    » Keywords: Reflection, Interference, MPI, ORL, VCSEL, Multipath, PAM, Multimode
    » Available in: Optical System Demos

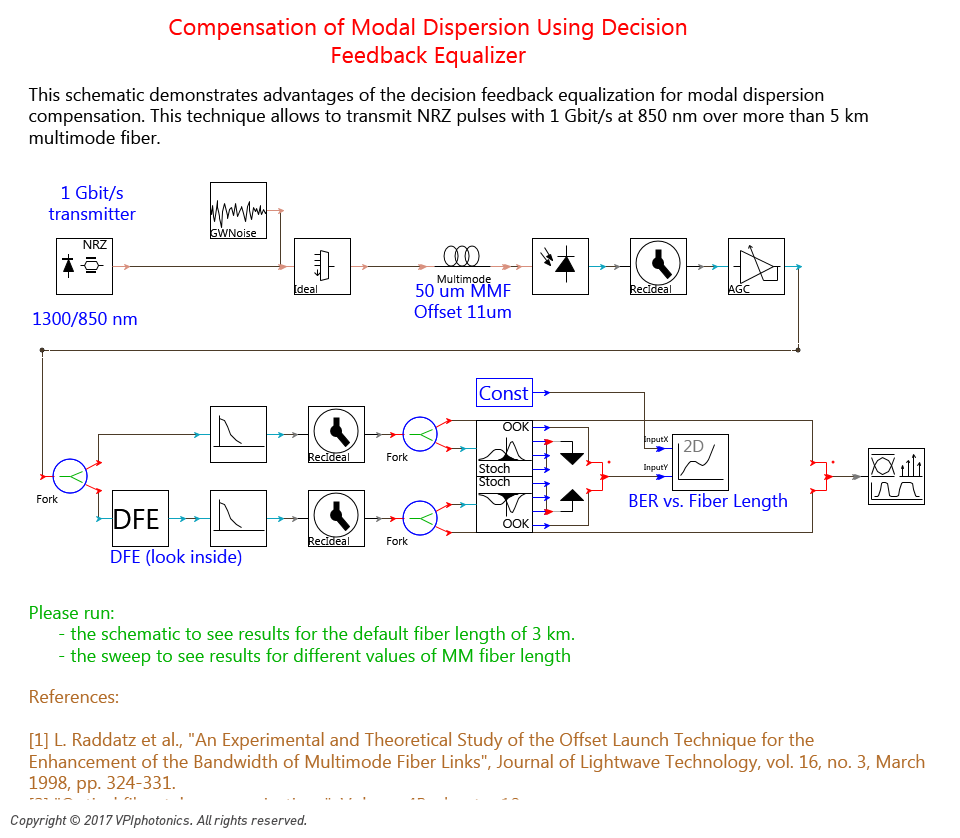

  • Compensation of Modal Dispersion Using Decision Feedback Equalizer


    This schematic demonstrates the advantage of decision feedback equalization for modal dispersion compenstation. This technique allows to transmit NRZ pulses with 1 Gbit/s at 850 nm over more than 5 km multimode fiber.

    Picture for Compensation of Modal Dispersion Using Decision Feedback Equalizer

    » Keywords: decision feedback equalizer, dispersion compensation, Multi-mode fiber
    » Available in: Optical System Demos

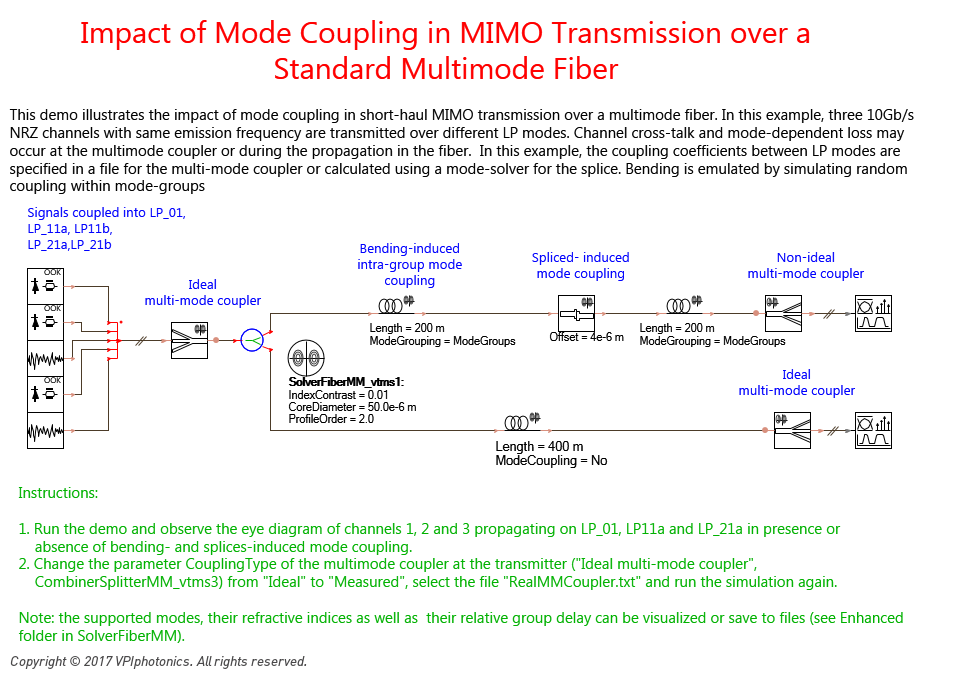

  • Impact of Mode Coupling in MIMO Transmission over a Standard Multimode Fiber


    Illustrates the impact of mode coupling in short-haul MIMO transmission over a multimode fiber. In this example, three 10Gb/s NRZ channels with same emission frequency are transmitted over different LP modes. Channel cross-talk may take place at the multimode coupler or during the propagation in the fiber as a consequence of bending-induced mode coupling.

    Picture for Impact of Mode Coupling in MIMO Transmission over a Standard Multimode Fiber

    » Keywords: Mode Coupling, MIMO, Multimode
    » Available in: Optical System Demos

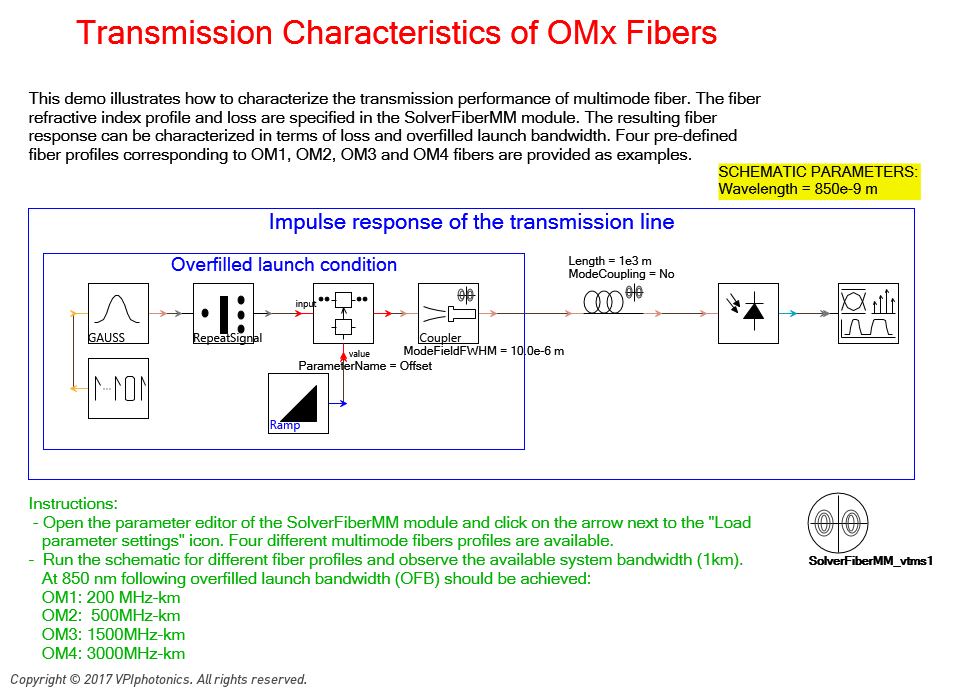

  • Transmission Characteristics of OMx Fibers


    This demo illustrates how to characterize the transmission performance of multimode fiber.

    Picture for Transmission Characteristics of OMx Fibers

    » Keywords: OFB, OM3, OM2, OM1, OM4, Multimode
    » Available in: Fiber Optics Demos, Optical System Demos

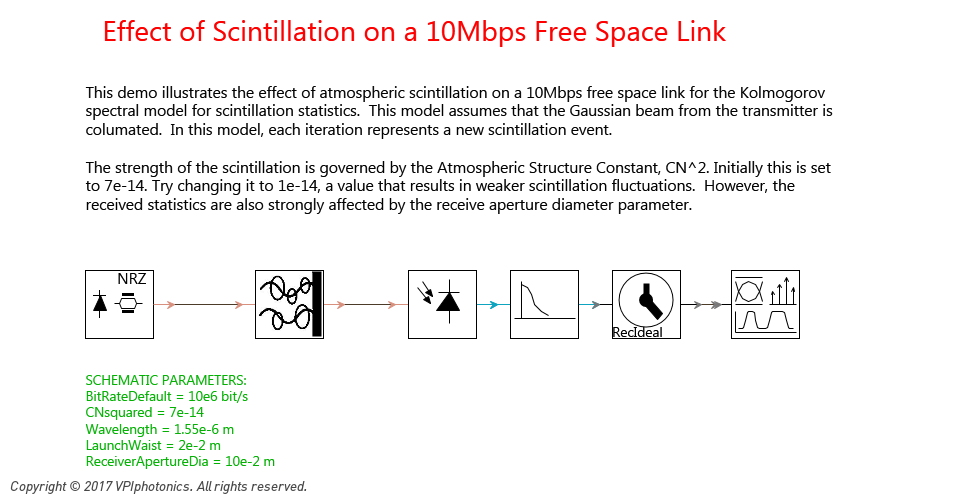

  • Effect of Scintillation on a 10Mbps Free Space Link


    Illustrates the effect of atmospheric scintillation on a 10Mbps free space link for the Kolmogorov spectral model for scintillation statistics. For further discussion refer to the white paper in the Attachments.

    Picture for Effect of Scintillation on a 10Mbps Free Space Link

    » Keywords: Space, Scintillation, Free, FSO
    » Available in: Optical System Demos
