VPIphotonics – Raman Amplifiers

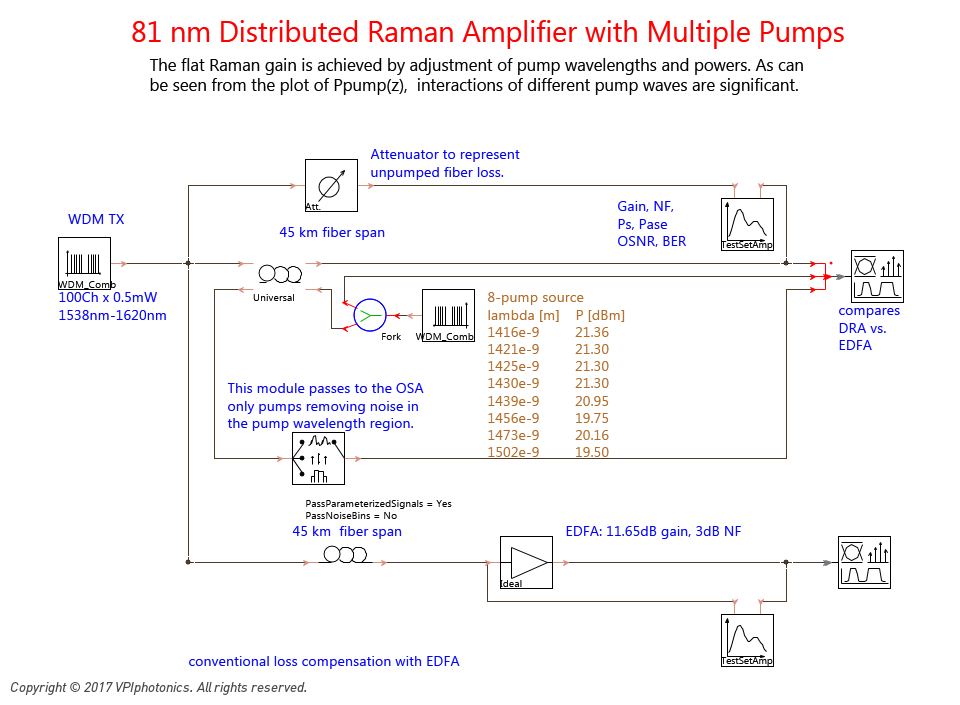

  • 81 nm Distributed Raman Amplifier with Multiple Pumps


    Demonstrates a gain-flattened Raman amplifier using eight pumps, with a bandwidth of 81 nm. The pumps strongly interact in the fiber. Thus, their powers are adjusted to compensate for this interaction.

    Picture for 81 nm Distributed Raman Amplifier with Multiple Pumps

    » Keywords: Raman, multiple pumps, amplifier, gain flattening
    » Available in: Fiber Optics Demos

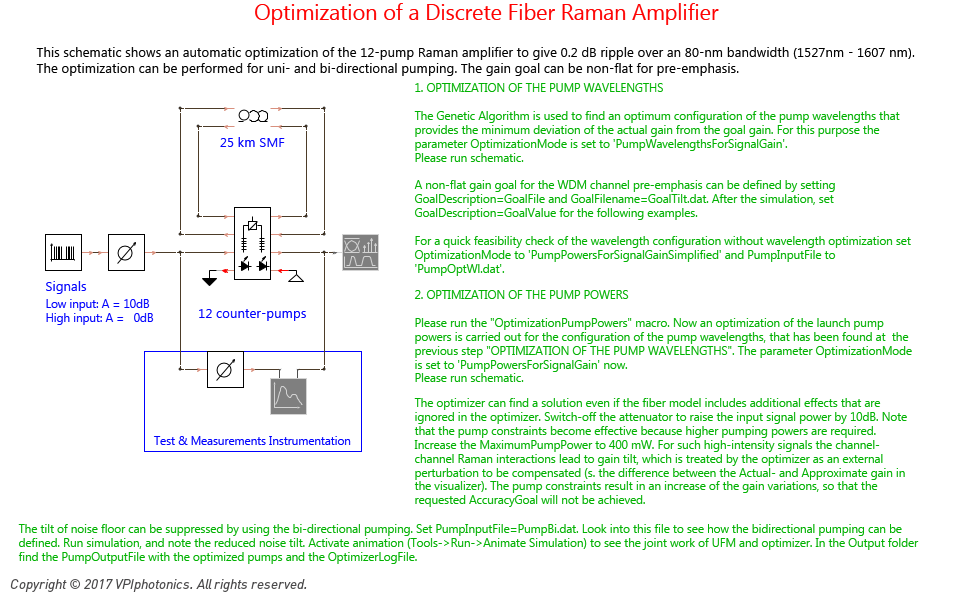

  • Optimization of a Discrete Fiber Raman Amplifier


    Shows the automatic optimization of a 12-pump Raman amplifier to give 0.2 dB ripple over an 80-nm bandwidth (1527 nm-1607 nm). The optimization can be performed for uni- and bi-directional pumping. The gain goal can be non-flat for pre-emphasis.

    Picture for Optimization of a Discrete Fiber Raman Amplifier

    » Keywords: Wavelength Optimization, FRA, Fiber Raman Amplifier, Power Optimization, Raman Pump Optimization
    » Available in: Fiber Optics Demos

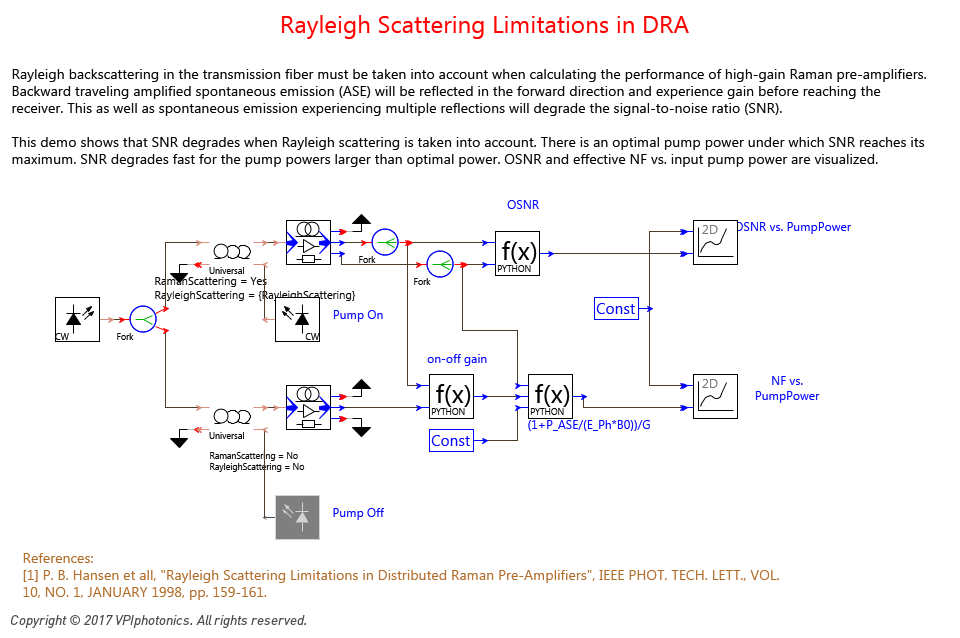

  • Rayleigh Scattering Limitations in DRA


    The demo shows SNR degradation due to Rayleigh backscattering in DRA

    Picture for Rayleigh Scattering Limitations in DRA

    » Keywords: Rayleigh backscattering, Raman amplifier, SNR degradation
    » Available in: Fiber Optics Demos

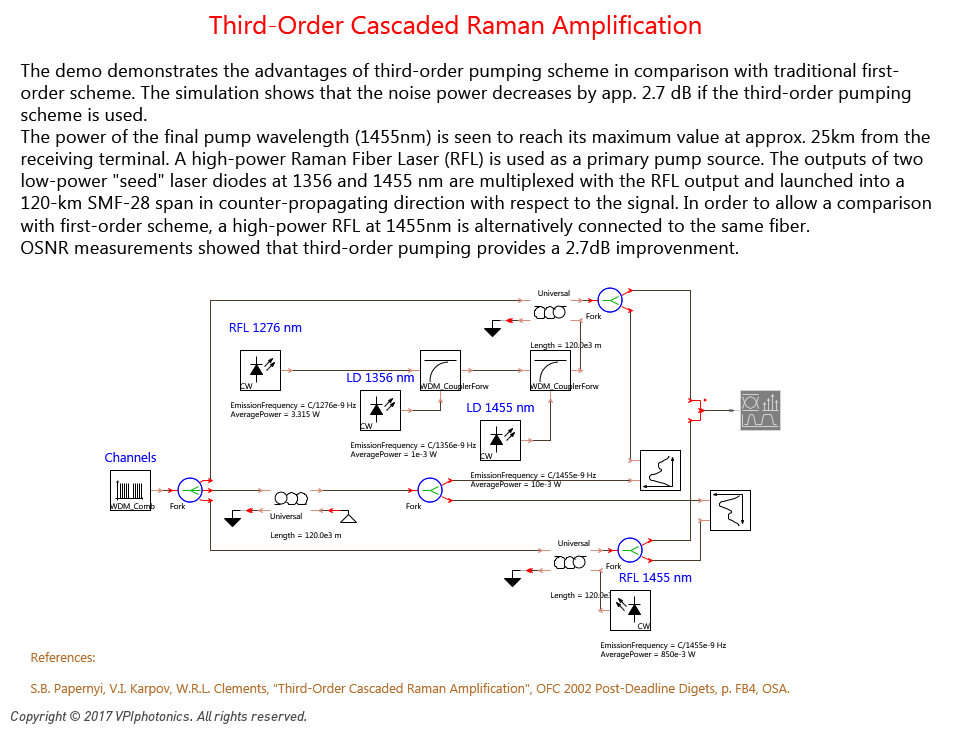

  • Third-Order Cascaded Raman Amplification


    Demonstrates the advantages of third-order pumping scheme in comparison with traditional first-order scheme.

    Picture for Third-Order Cascaded Raman Amplification

    » Keywords: Raman, First-order, Amplifier, Pumping, Pump, Third-order
    » Available in: Fiber Optics Demos

« back to other demos
